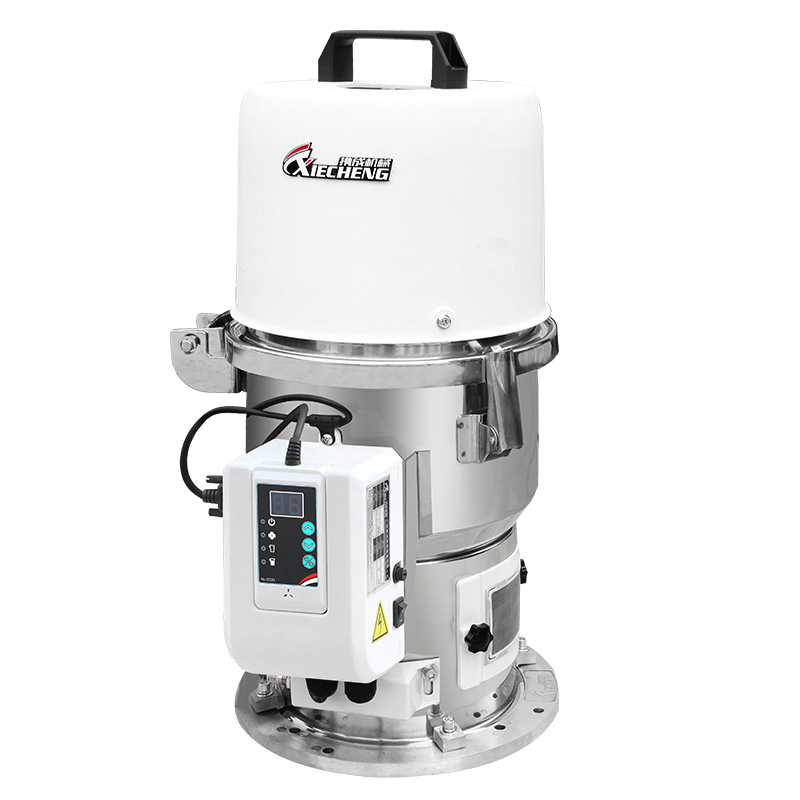

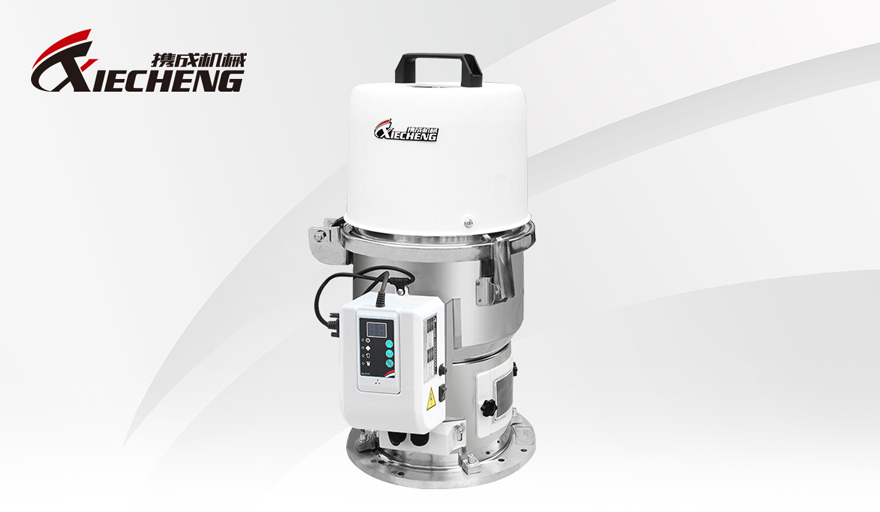

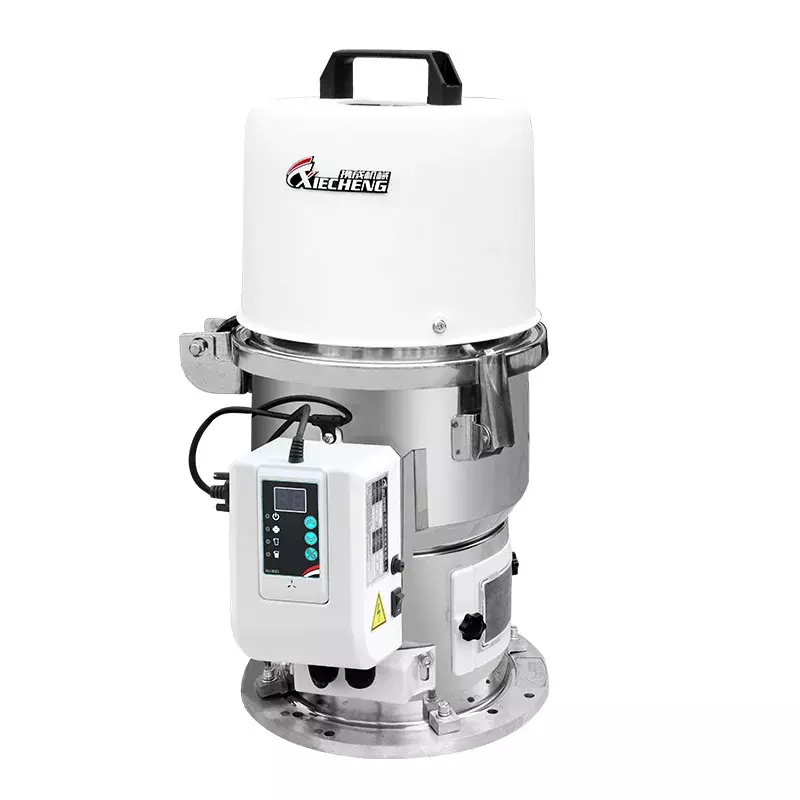

EURO-AUTO LOADER
Feeding & Conveying Series
FEATURE:
1. Adopt carbon brush motor, high rotating speed, large air volume, small size, convenient to move and easy to install;
2. Cable remote controller, easy to operate, with auto cleaning function;
3. All stainless steel contact parts, no pollution in material conveying;
4. With cloth type filter and auto spray cleaning and dust removal device;
5. Material outlet and bottom base can be adjusted by any direction;
6. Adopt magnetic reed switch, sensitive sensor, reliable quality.

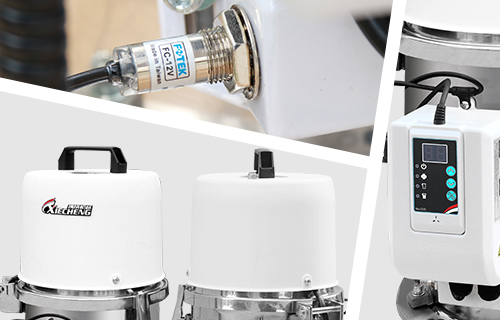

Core Component
1. Adopt carbon brush motor, high rotating speed, large air volume,small size, convenient to move and easy to install;
2. Cable remote controller, easy to operate, with auto cleaning function.

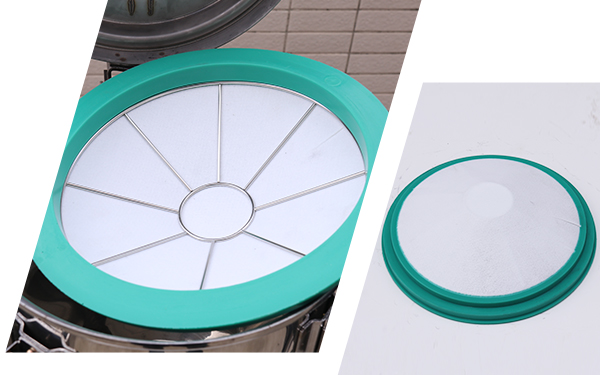

Filter System
With cloth type filter and auto spray cleaning and dust removal device.

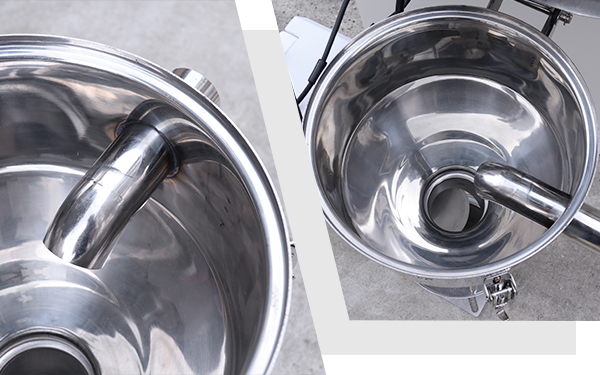

Stainless Steel Material
All stainless steel contact parts, no pollution in material conveying.

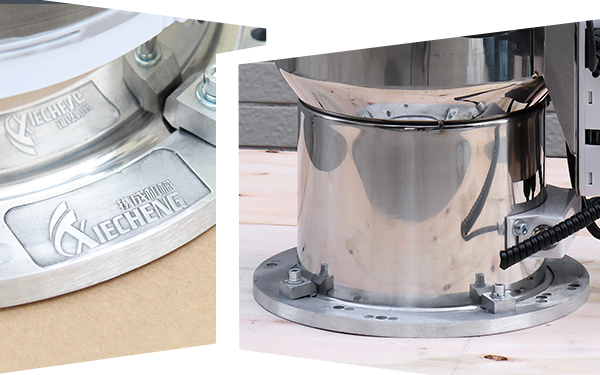

Humanized Design
Material outlet and bottom base can beadjusted by any direction.
|
Structure Diagram
|
Specifications
| Model | XC-VAL300G |
| Motor | Model | Carbon Brush |
| Specification | 1.1kw/1.3hp 1φ |
| Conveying Capacity (kg/hr) | 300 |
| Loading Distance(m) | 3.5 |
| Static Wind Pressure (mm/H2O) | 1300 |
| Storage Tank Capacity (L) | 6 |
| Conveying Tube Inner Diameter(mm) | φ38 |
| Specification of the Attached Hoses | φ38mm×4m 1pc |
| Dimensions L x W x H(cm) | 39x29x56 |
| Weight (kg) | 9.7 |
